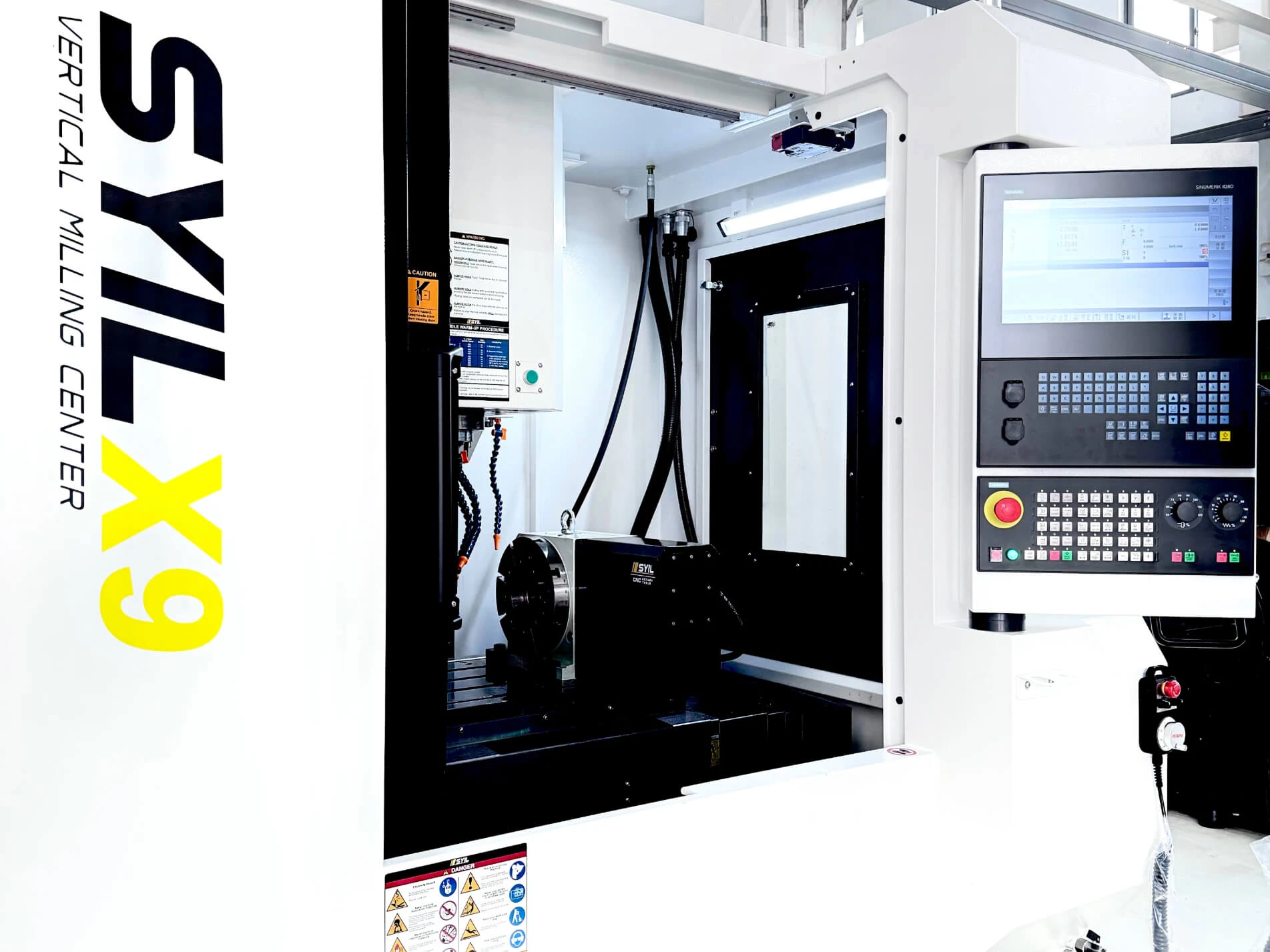

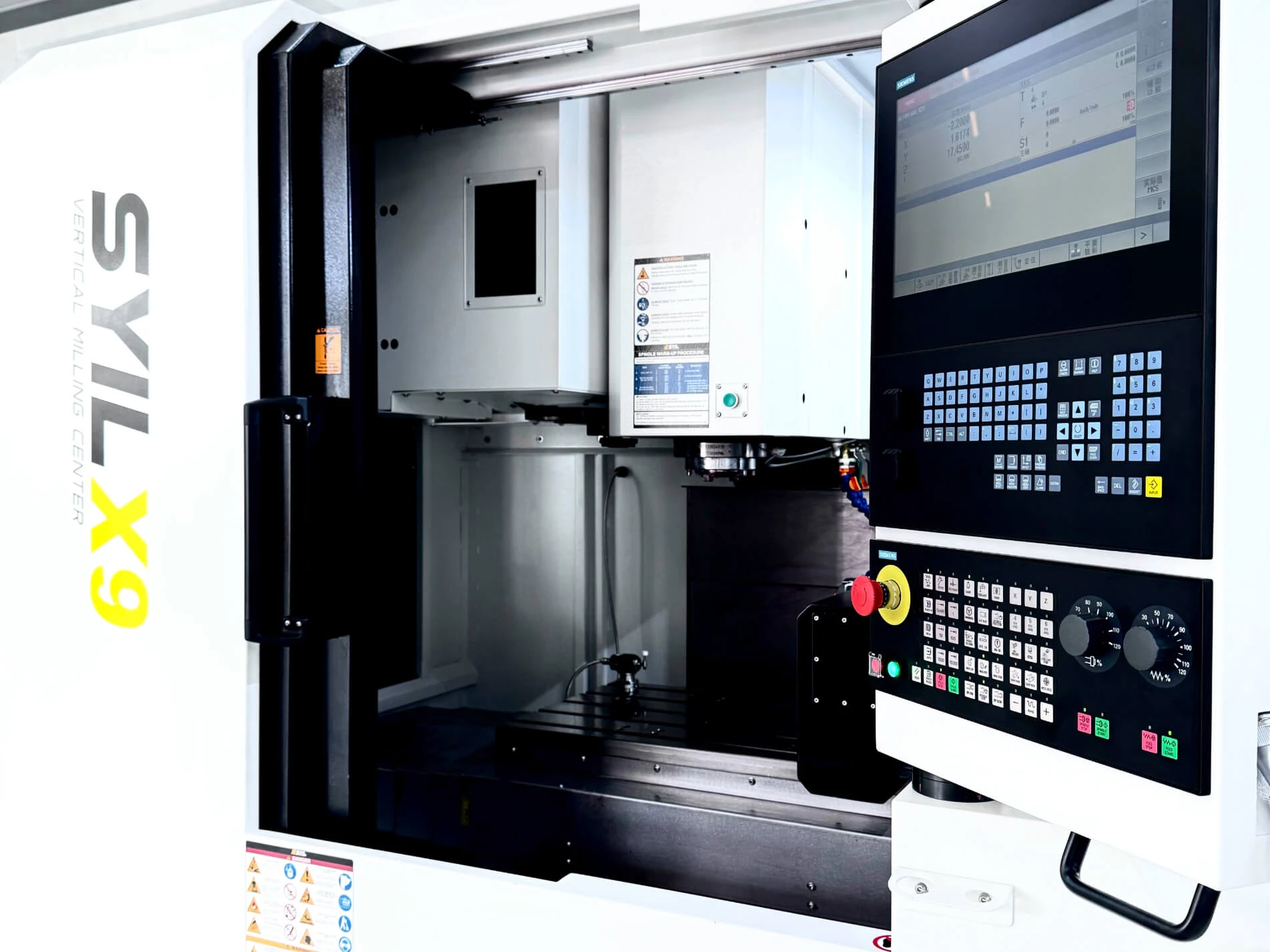

SYIL X9 Vertical Mill Vertical Milling Center

With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive.

Product Info

First-Class Components and Solid Construction

760×500×500 mm axis travels
24-pocket high-speed servo auto tool changer
10,000 rpm BT40 spindle
SCHNEEBERGER mineral casting

Specifications

Machine Specifications

Table

Working surface: 860×500 mm
T-Slots (Number x Size x Distance): 18×5×100 mm
Max. table load: 500 kg

Travel

Longitudinal Travel X: 760 mm
Cross Travel Y: 500 mm
Headstock Travel Z: 500 mm
Distance between spindle end and tabletop: 100-600 mm
Distance between spindle center and column surface: 530 mm

Spindle

Spindle nose: BT40
Spindle speeds: 12,000 rpm
Mechanism of Transmission: Belt/Direct type

Feed

Cutting feed: 10,000 mm/min
Rapid traverse: 30,000 mm/min

Auto Tool Changer

Tool holder: Arm type
Tool storage Capacity: 24 pcs
Max. tool diameter: 125 mm
Max. tool length: 240 mm
Max. tool weight: 7 kg
Tool to Tool: 2.0 s

Motors

Spindle motor output：11/17 kW
Drive motors X, Y, Z Axis: 3.9/3.9/5.9 kW

General

Floor space (L×W×H): 1850×2245×2800 mm
Weight: 6000 kg

Resources

No resources found

Add-on Options

NC rotary table Servo | 4th axis 255 mm
Tail Stock for 255 mm NC rotary table

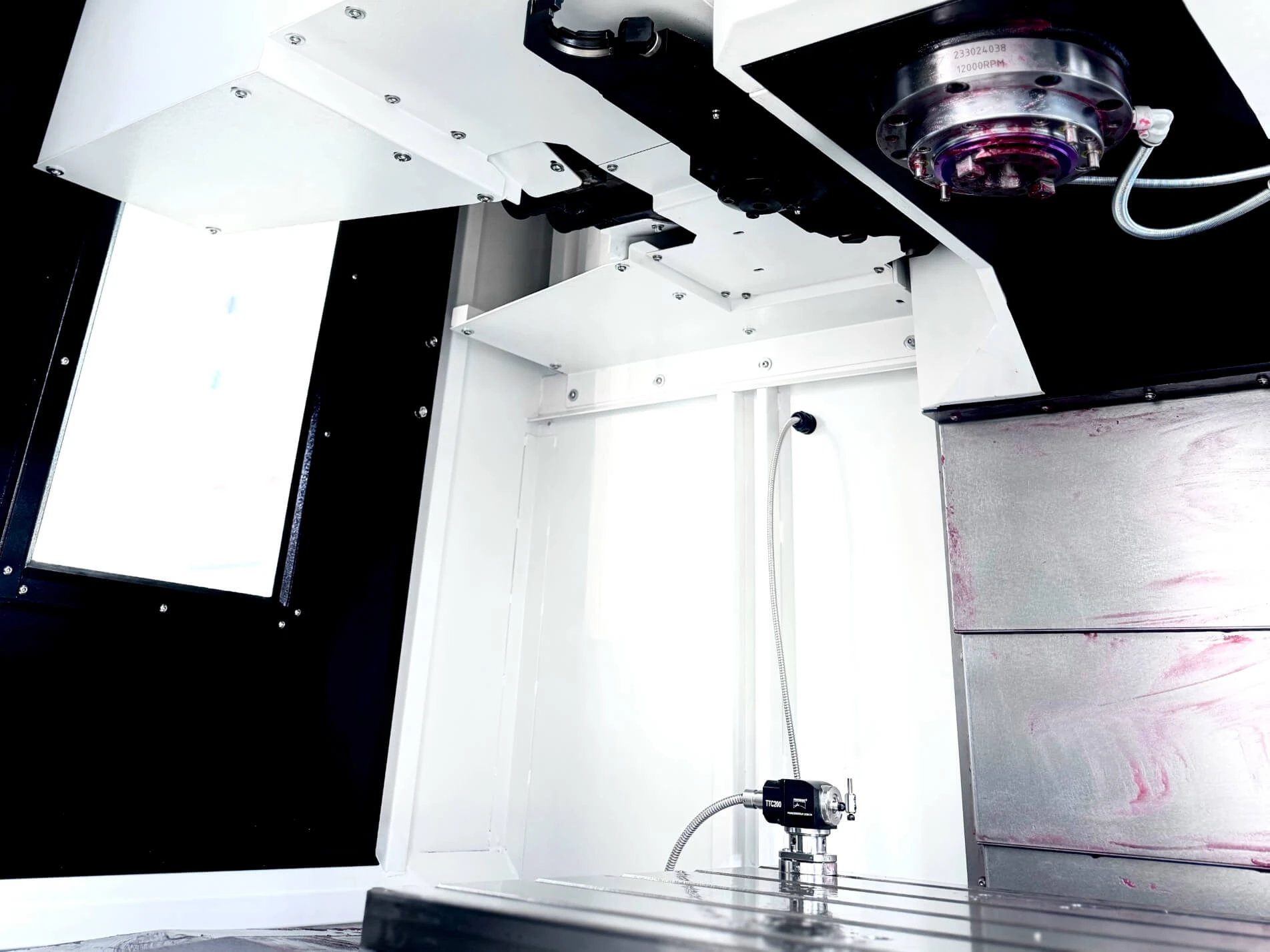

Probe System | Wireless type
Tool Setter Kits | Cable type TTC200
Filtermist (for X Series)
Coolant Through Spindle (CTS 20 Bar)
Chip Conveyor (for X9)
SYIL Tooling Package
