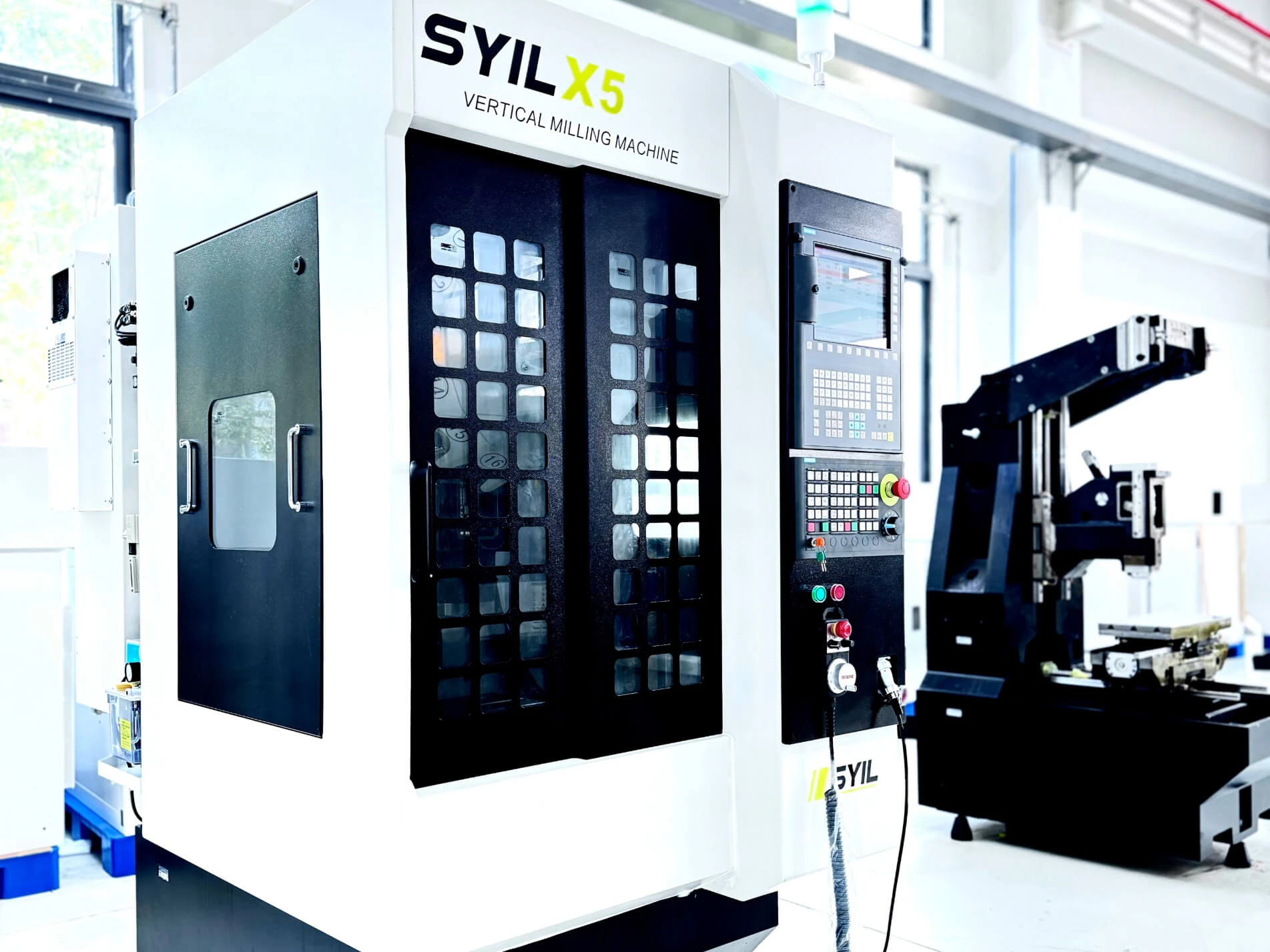

SYIL X5 Mini CNC Mill Vertical Milling Center

X5 Mini CNC Machine: Unleash Your Creativity with Precision and Versatility Discover the versatile SYIL X5 mini mill, perfect for hobbyists and professionals. Compact design, high precision, and affordable pricing.

Product Info

Space- And Money-Saving CNC Machine

300×260×300 mm axis travels
16-pocket high-speed servo tool changer
20,000 rpm direct-coupled BT30 spindle
SCHNEEBERGER mineral cast bed
One-meter width for narrow spaces

Specifications

Feature overview

Table

Table size: 560×260 mm
T-Slots (number×size×distance): 3×14×80 mm
Max. table load: 150 kg

Travel

X Travel: 300 mm
Y Travel: 260 mm
Z Travel: 300 mm
Distance between spindle end and tabletop: 150-450 mm
Distance between spindle and column surface: 330 mm

Spindle

Spindle nose: BT30
Spindle speeds: 20,000 rpm
Mechanism of transmission: Direct

Feed

Cutting feed: 10,000 mm/min
Rapid traverse: 30,000 mm/min

Auto Tool Changer

Tool type: Wheel
Tool storage capacity: 16 positions
Max. tool diameter: 63 mm
Max. tool length: 200 mm
Max. tool weight: 3 kg
Tool to Tool: 1 s

Power

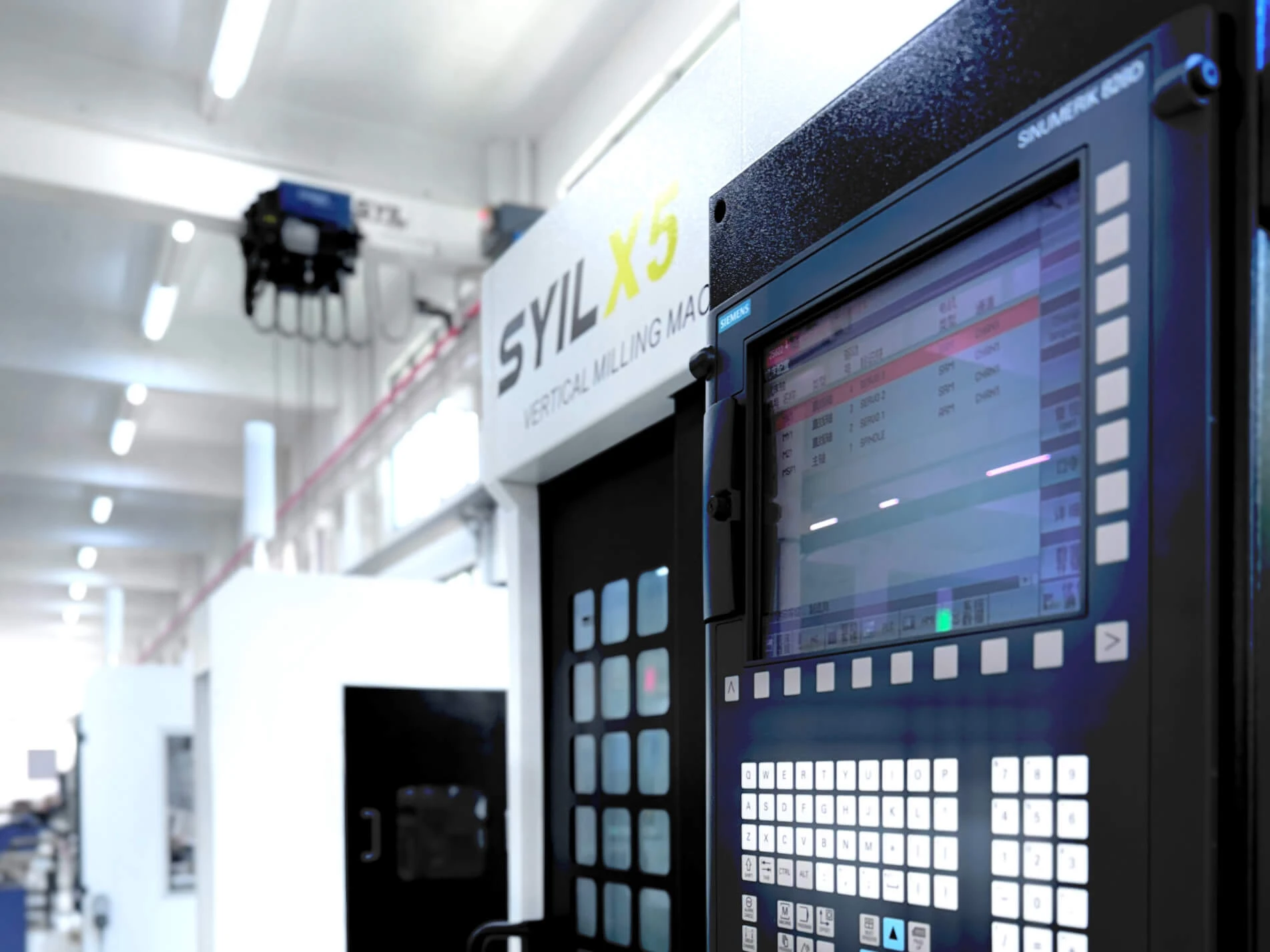

Siemens
Spindle motor output(Rate/Max): 4.8 kW
Drive motors(X,Y,Z): 1/2.2/3.5 kW
Power Source: AC380V/ 3-Phase
Power: 12 kVA

FANUC

Spindle motor output(Rate/Max): 3.7/5.5 kW
Drive motors (X,Y,Z): 1/2.5/2.7 kW
Power Source: AC220V/ 3-Phase
Power: 12 kVA

Syntec

Spindle motor output(Rate/Max): 5.5/7.5 kW
Drive motors (X,Y,Z): 1/1.7/2.4 kW
Power Source: AC380V/ 3-Phase
Power: 12 kVA

Machine Size and Weight

Floor size (L×W×H): 2020×1000×2360 mm
Weight: 2180 kg

Resources

No resources found

Add-on Options

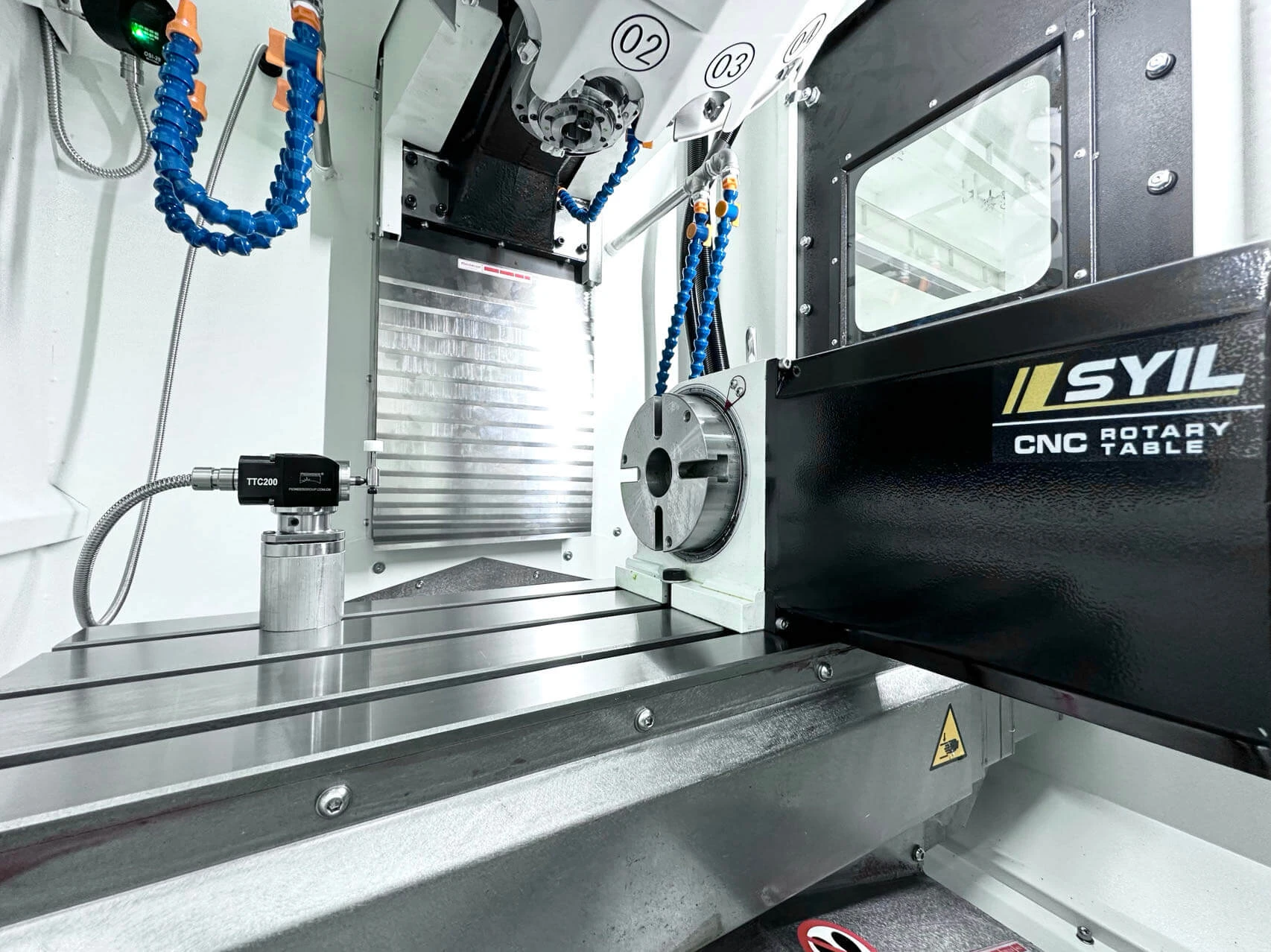

NC rotary table Servo | 4th axis 125 mm
Tail Stock for 125 mm NC rotary table
Probe System | Wireless type
Tool Setter Kits | Cable type TTC200
SYIL Tooling Package
