SYIL X11 Vertical Machining

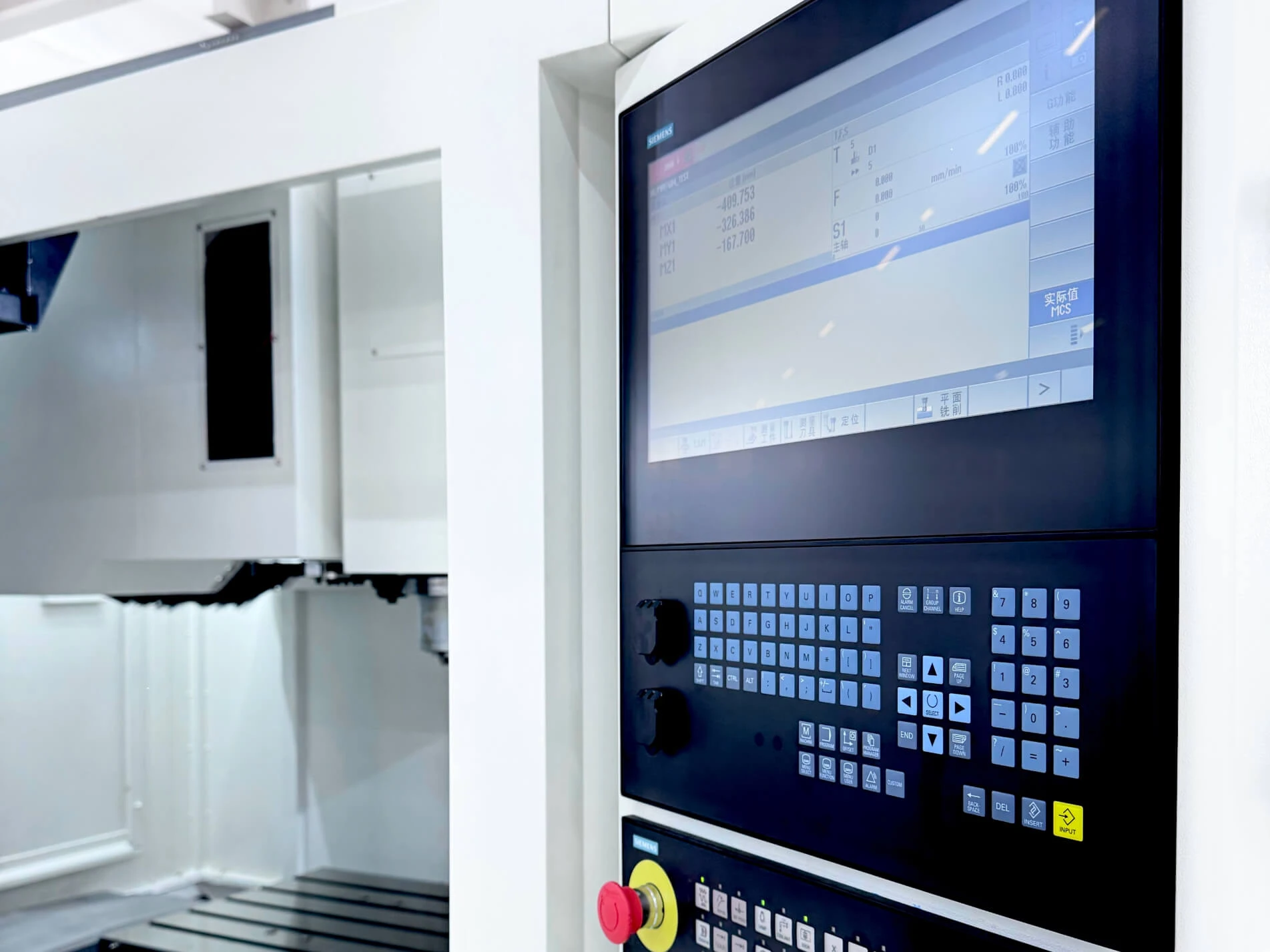

The SYIL X11 Vertical Machining Centre offers robust construction and a sleek design, maximizing productivity even in limited workspaces. Its advanced control system allows for precise control over various machining operations, while the user-friendly interface provides real-time monitoring for quick adjustments.

Product Info

Designed for Large Workpieces

1000x500x500 mm axis travels

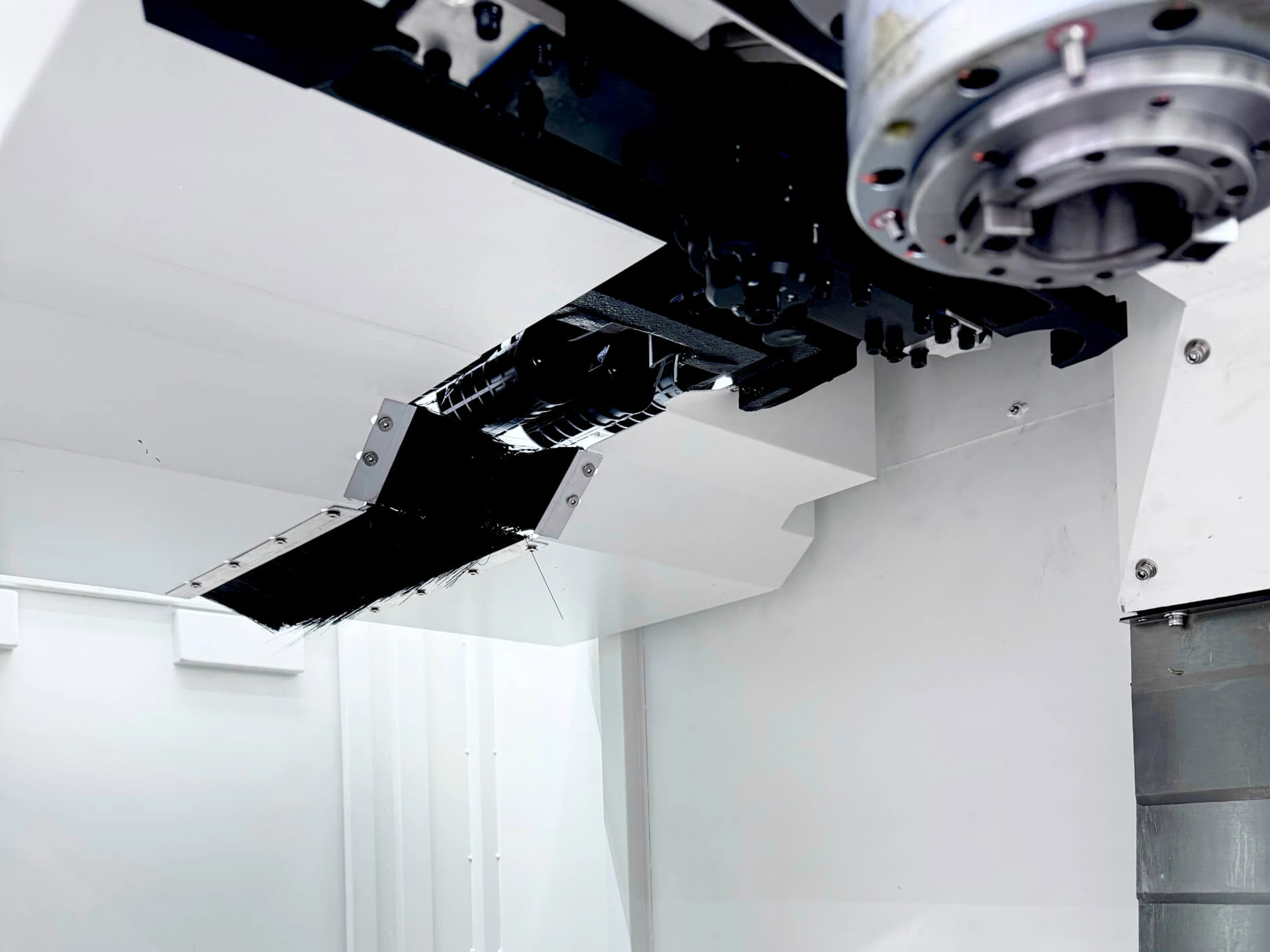

24-pocket high-speed servo auto tool changer
12,000 rpm BT40 spindle
SCHNEEBERGER mineral casting

Specifications

Machine Specifications

Table

Table Size: 1050×550 mm
T-Slots(Number x Size x Distance): 18x5x90 mm
Maximum Table Load: 600 kg

Travel

X Travel: 1000 mm
Y Travel: 500 mm
Z Travel: 500 mm
Distance between spindle end and tabletop: 110-610 mm
Distance between spindle and column surface: 650 mm

Spindle

Spindle Nose: BT40
Spindle Speeds: 12,000 rpm/10,000 rpm
Mechanism of Transmission: Direct/Belt

Feed

Cutting Feed: 10,000 mm/min
Rapid Traverse: 30,000 mm/min

Auto Tool Changer

Tool Type: Arm Type
Tool Storage Capacity: 24 pcs
Max.Tool Diameter: 120 mm
Max.Tool Length: 300 mm
Max.Tool Weight: 7 kg
Tool to Tool: 2.5 s

Power

Spindle motor output(Rate/Max): 11/17 kW
Drive motors (X, Y, Z): 3.9/3.9/5.9 kW
Power Source: AC380V/ 3-Phase

Machine Size and Weight

Floor Size (LxWxH): 2600×2150×2500 mm
Weight: 7000 kg

Resources

No resources found

Add-on Options

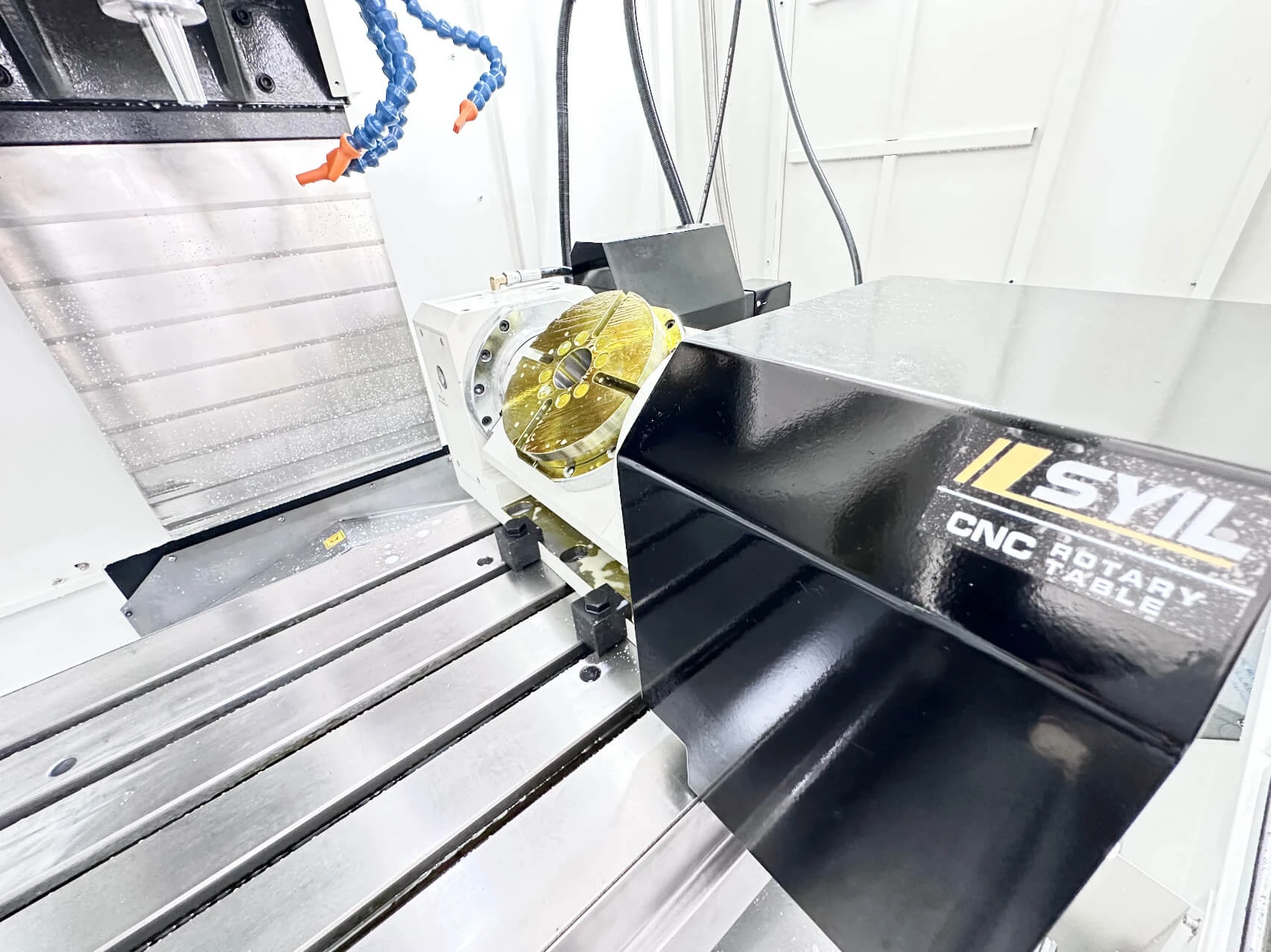

NC rotary table Servo | 4th axis 255 mm
Tail Stock for 255 mm NC rotary table
Probe System | Wireless type
Tool Setter Kits | Cable type TTC200
Filtermist (for X Series)
Coolant Through Spindle (CTS 20 Bar)
Chip Conveyor (for X11)
SYIL Tooling Package
