Processing Capacity

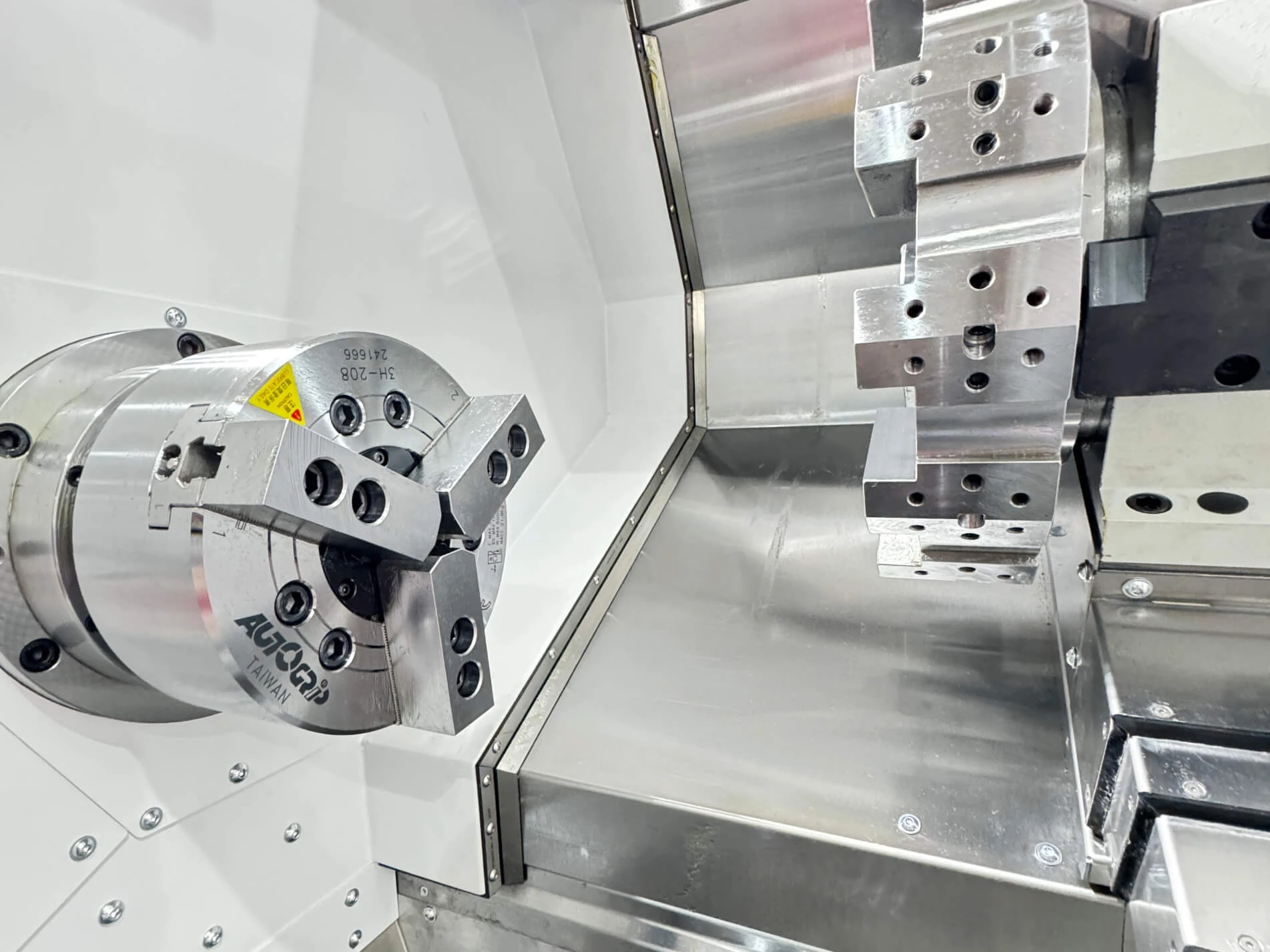

• Chuck size: 8 inch
• Max. swing diameter over bed: ø510 mm
• Max. swing diameter over carriage: ø260 mm
• Max. workpiece Length: 300 mm
• Max. work piece diameter: ø380 mm

Spindle

• Max speed: 4000 rpm
• Spindle nose: A2-6
• Spindle bore diameter: ø66 mm
• Through spindle bore diameter: ø52 mm
• Spindle power: 11/15 kW

Tool Holder

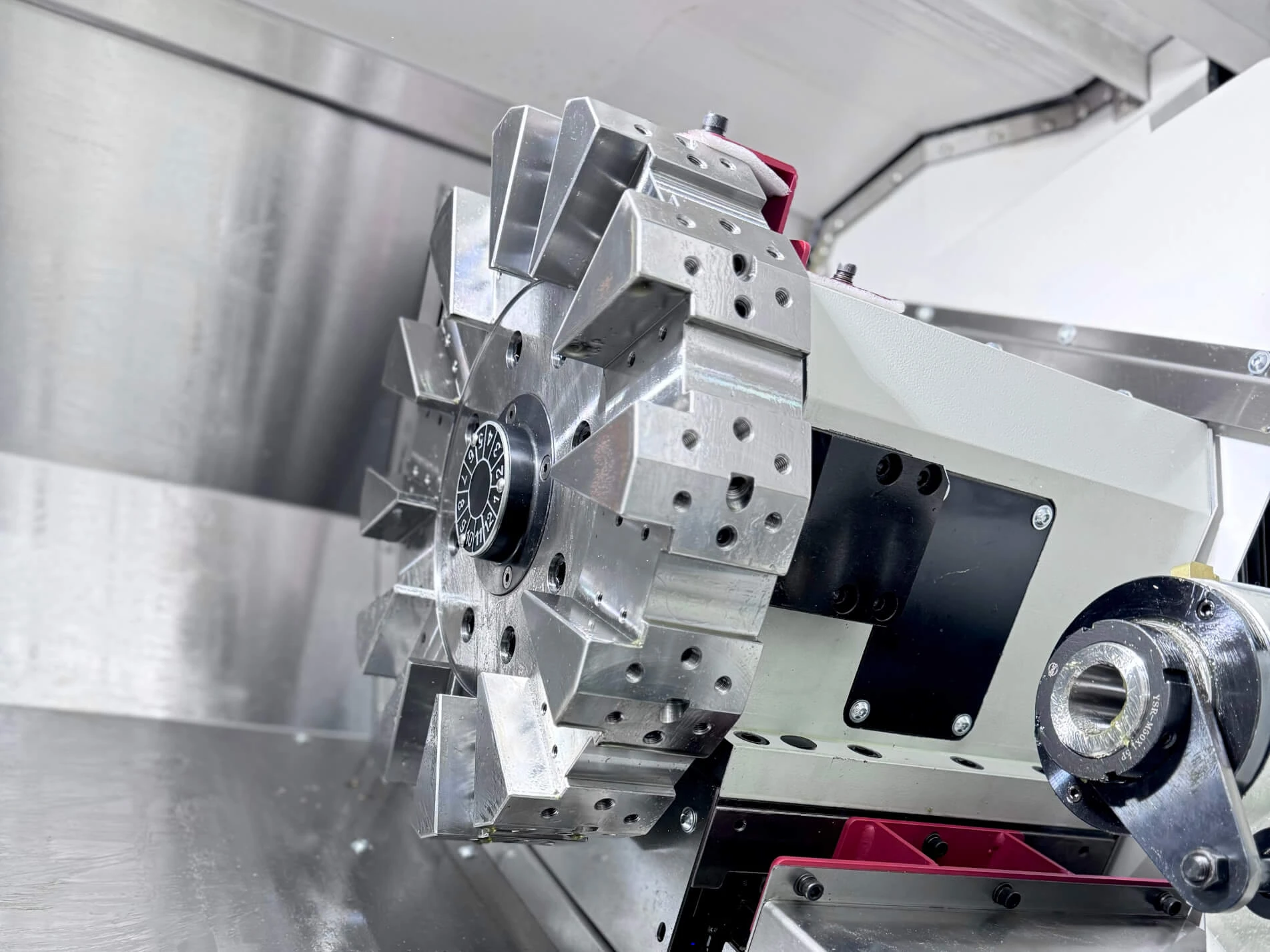

• Type: Servo turret
• Tools: 8/12
• Tool shank size: 25×25/20×20 mm
• Tool shank diameter: ø40/ø32 mm

Travels

• X Rapid traverse: 30 m/min
• Z Rapid traverse: 30 m/min
• X Travels: 200 mm
• Z Travels: 360 mm

Accuracy

• Finish turning cylindrical accuracy: IT6
• Finish turning parts surface: Ra0.4-1.6
• Finished turning parts roundness: ≤0.003 mm
• Position accuracy (Ｘ): 0.005 mm
• Position accuracy (Ｚ): 0.008 mm
• Repeat accuracy (Ｘ): 0.002 mm
• Repeat accuracy (Ｚ): 0.004 mm

Dimensions and Weight

• Dimensions(LxWxH): 1775x1600x1690 mm
• Weight.: 3050 kg
