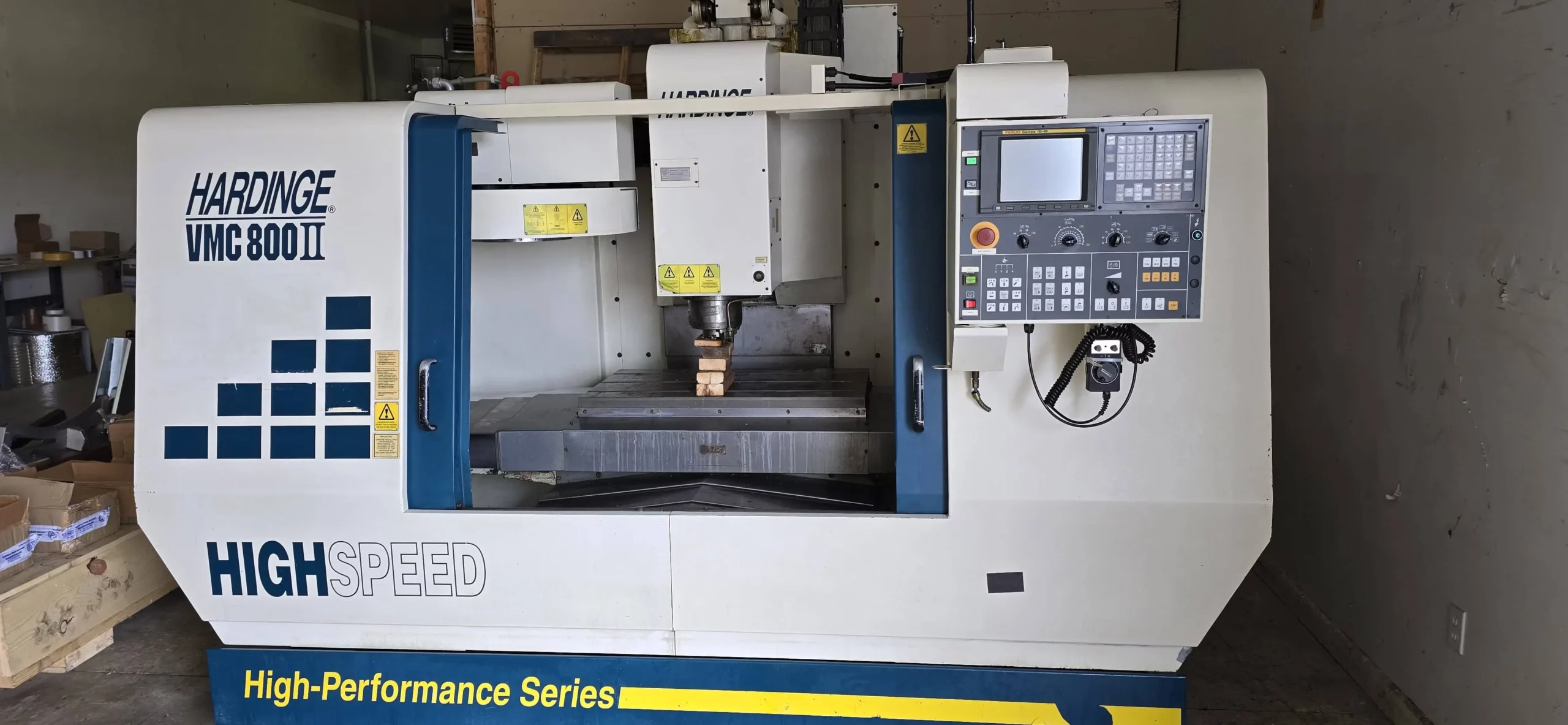

HARDINGE VMC-800 II (sold)

This machine has low hours and is equipped with a high-end Fanuc controller and a 4th axis.

Product Info

This machine has low hours and is equipped with a high-end Fanuc controller and a 4th axis.

Specifications

Year of Manufacture: 2001

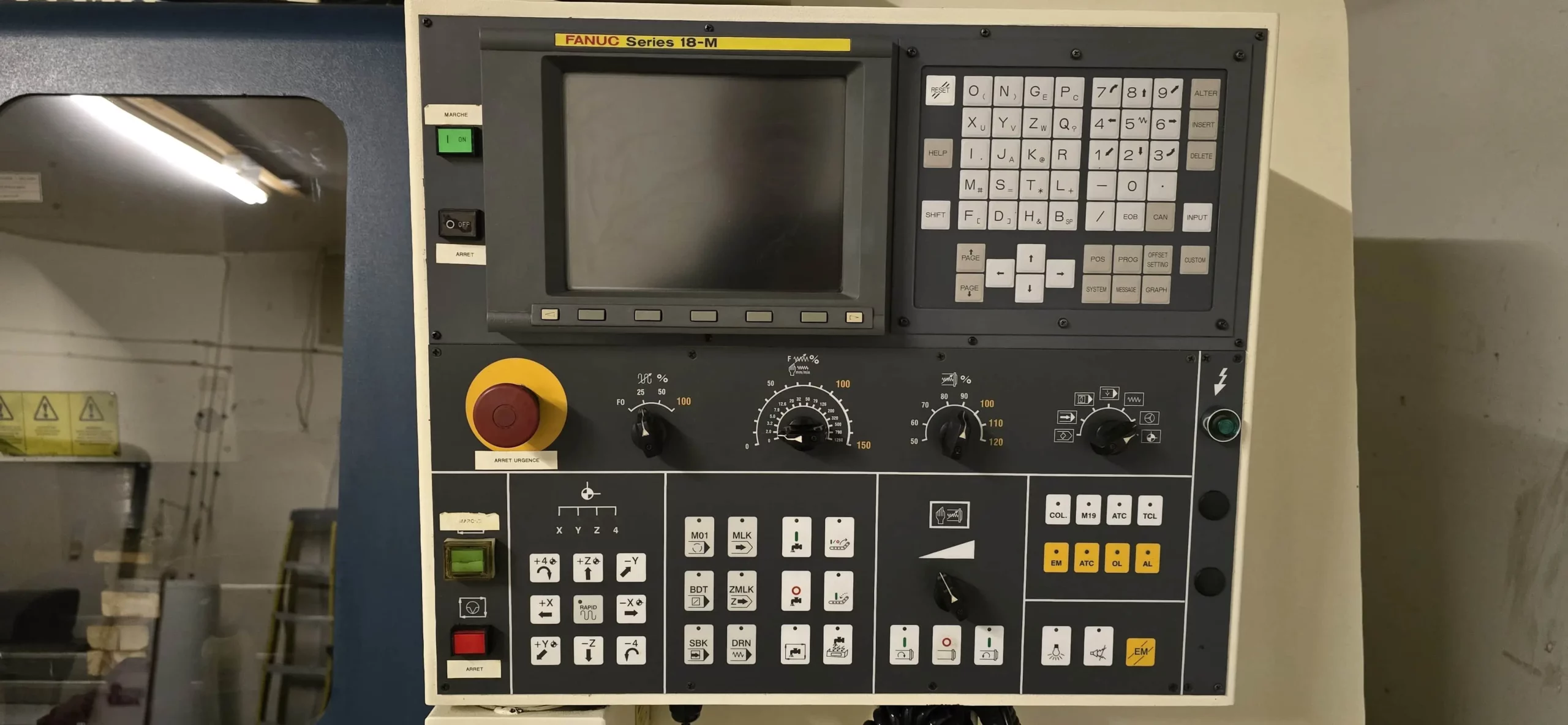

Controller: Fanuc 18-M

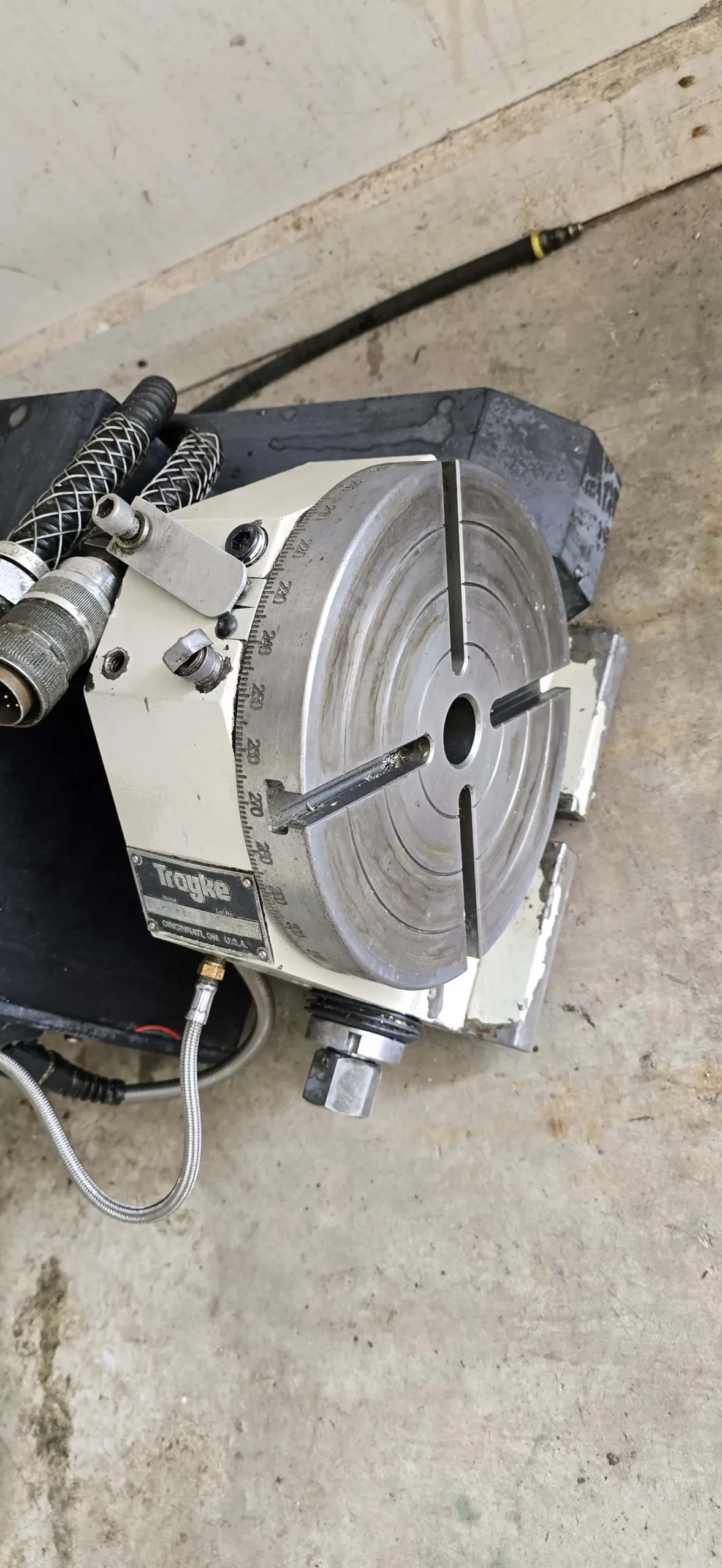

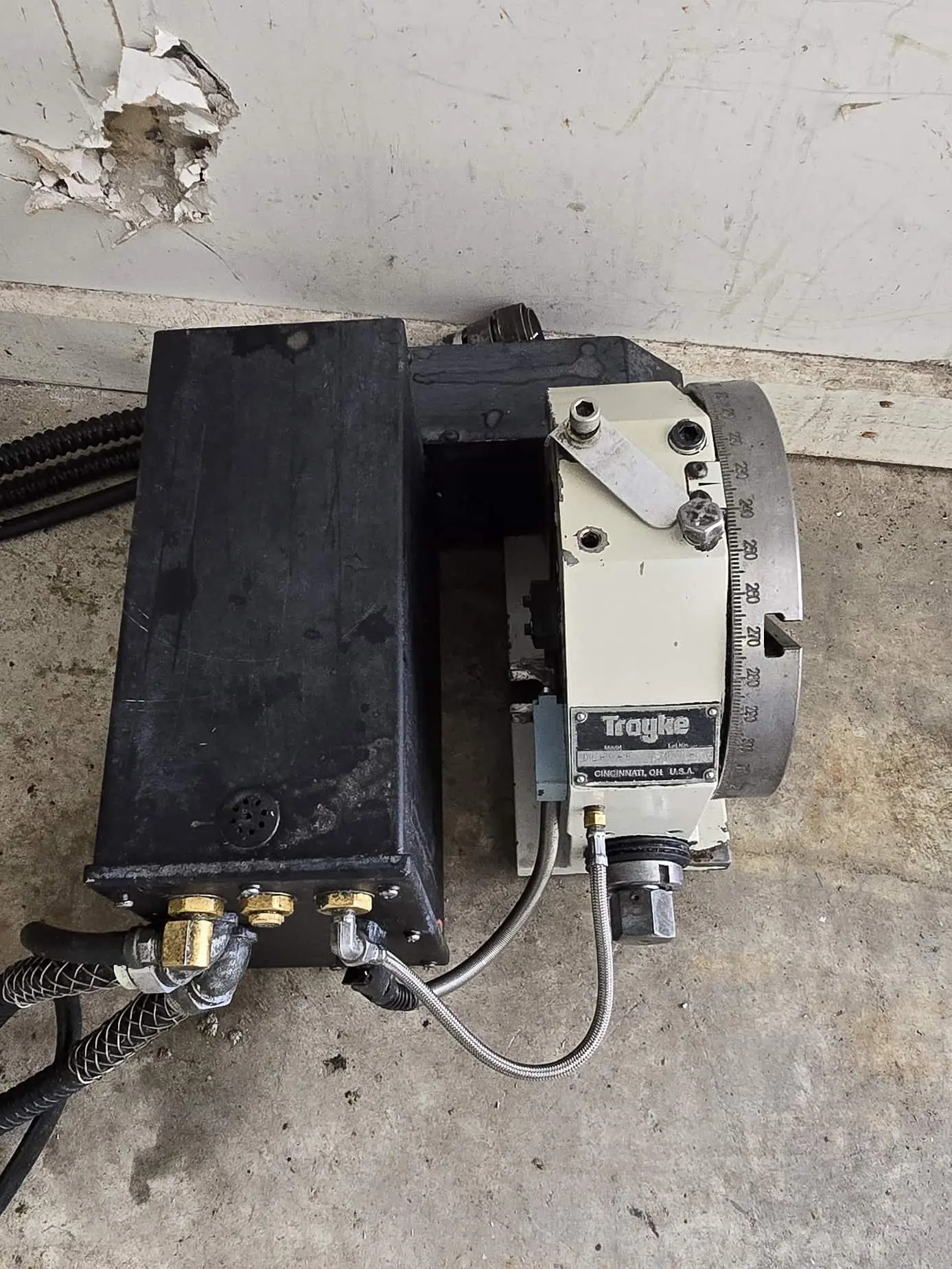

4th Axis: Yes
Table Size: 36″ x 20″ (914 mm x 508 mm) Load: 1,540 lbs (698 kg)
Travel:
- X-Axis: 31.5″ (800 mm)
- Y-Axis: 20.08″ (510 mm)
- Z-Axis: 20.08″ (510 mm)
Rapid Traverse Rate (All Axes): 1,181 IPM (30,000 mm/min)
Cutting Feed Rate: 0.1 – 472 IPM (2.5 – 12,000 mm/min)
Spindle Taper: CAT 40
Spindle Speeds: 0 – 10,000 RPM 18 HP
Tool Changer Capacity: 20 stations
Maximum Tool Weight: 13.2 lbs (6 kg)
Machine Weight (Approx.): 11,000 lbs (4,990 kg)
Dimensions (Approx.): 117″ x 86″ x 108″ (2,972 mm x 2,184 mm x 2,743 mm)
